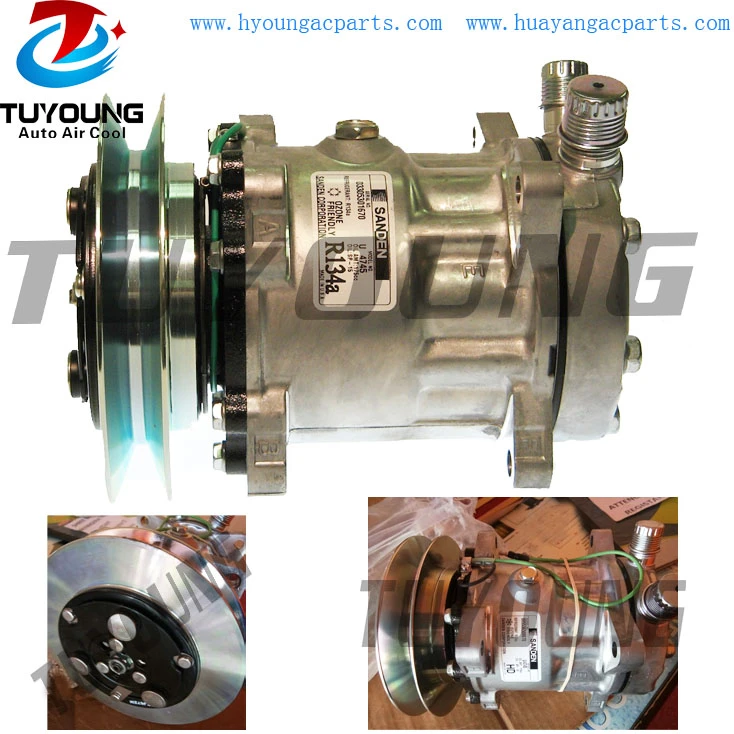

All type vehicle a/c compressor sanden 7H15 U 4745 24V R134A 1pk

Time: 2018-07-26
Summary: HY-AC1151 car air con ac compressor sanden 7H15 U 4745

All type vehicle a/c compressor sanden 7H15 U 4745 24V R134A 1pk


Item:HY-AC1151

Details:

 Compressor Family: SD7H15

Style: HD

Mount Type: Ear 8 Long

Ear ID: 83.3

Refrigerant: R134A

Displacement: 155.00

Rotation Direction: CW

Oil Qty (cc): 175

Cylinder Head: JD

Port Angle: V

Port Clocking: 12:00

Head Port Style: 3/4X7/8

Rotor Size: 158

Rotor Groove: C1

Gauge Line

to First Groove: 39.55

Gauge Line

to Middle Groove: 39.55

Gauge Line

to End Groove: 39.55

Coil Voltage: 24

Connector: 1 Wire Male Bullet
