SD5H09 auto AC compressor for Universal Sanden 5072 O-Ring SD 5072 5071 ABPN83304622 345-4547 606-1394 6061394 3454547 CO 5072C 2010062 3004209 3013820
- Model
- HY-AC112
Item specifics
- Brand name
- TUYoung
- pulley /Clutch diameter/ Volt
- 2G 125mm 12V
- apply
- Universal
- OEM
- Sanden SD 5072 5071 ABPN83304622 345-4547
- Compressor id
- Sanden SD5H09
- type
- ROT Vertical
- PN#
- 606-1394 6061394 3454547 CO 5072C 2010062 3004209
Review
Description

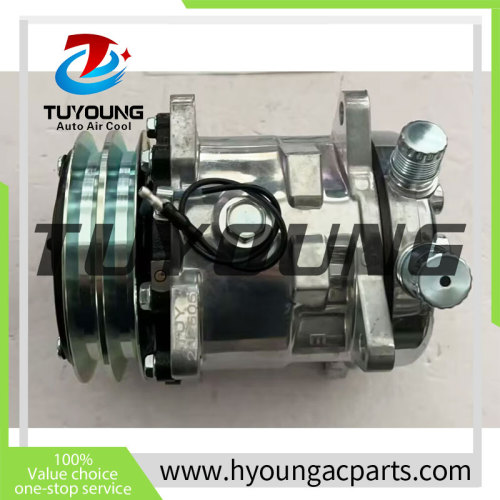

auto air conditioning compressor Sanden 5072 SD5H09 O-Ring Vertical 2G 125mm 12V
TUYOUNG ID: HY-AC112
Description:
Sanden 5H09 2G 125mm 12 v air conditioning compressor/ kompressor
New OEM Sanden Caterpillar Skidsteer AC compressor OEM Numbers: 606-1394 Replaces 345-4547
Sanden Number: 5072
Compressor Family: SD5H09
Style: Heavy Duty
Compressor Mount Type: Ear
Rotation Direction: CW
Cylinder Head: FL
Port Angle: Vertical
Head Port Discharge Size: 3/4 X 14 Male Thread
Head Port Suction Size: 7/8 X 14 Male Thread
Clutch Diameter: 125 mm ~ 4 and 15/16 inches
Belt Type: V-Belt
Number of Grooves: 2
Voltage: 12
Coil Connector: 1 Wire Male Bullet
Coil Position: 12 O'clock
Oil Type: PAG 100
Oil Qty: 100cc
Refrigerant: R134a
Apply for Universal types:
OEM
Sanden SD 5072
SD5H09
sd 5073
1101334
509396
10364941
157587
158587
ABPN83304662
5511289
6511289
7511289
405197
971000
TEM971000
2010057
2010057AM
2010057S
75R82104
RD5103080P
CO2111CA
C2928
345-4547
SD 5072 5071
ABPN83304622
345-4547
606-1394
6061394
3454547
CO 5072C
2010062
3004209
3013820
