auto ac compressor clutch for Suzuki Swift III SX4 PN# 9520062JA0 AKC011H088 AKC201A083A
auto ac compressor clutch for Suzuki Swift III SX4 PN# 9520062JA0 AKC011H088 AKC201A083A
auto ac compressor clutch for Suzuki Swift III SX4 PN# 9520062JA0 AKC011H088 AKC201A083A
Model
HY-CH134

Item specifics

Brand name
HYoung
pulley/ Clutch diameter/ volt
4pk 93 mm 12 V
apply
for Suzuki Swift III SX4 2005 -
OEM
95200-62JA0 AKC011H087 AKC011H088
Compressor ID
MSC60CAS
PN#
AKC200A083A AKC201A083A

Review

Description

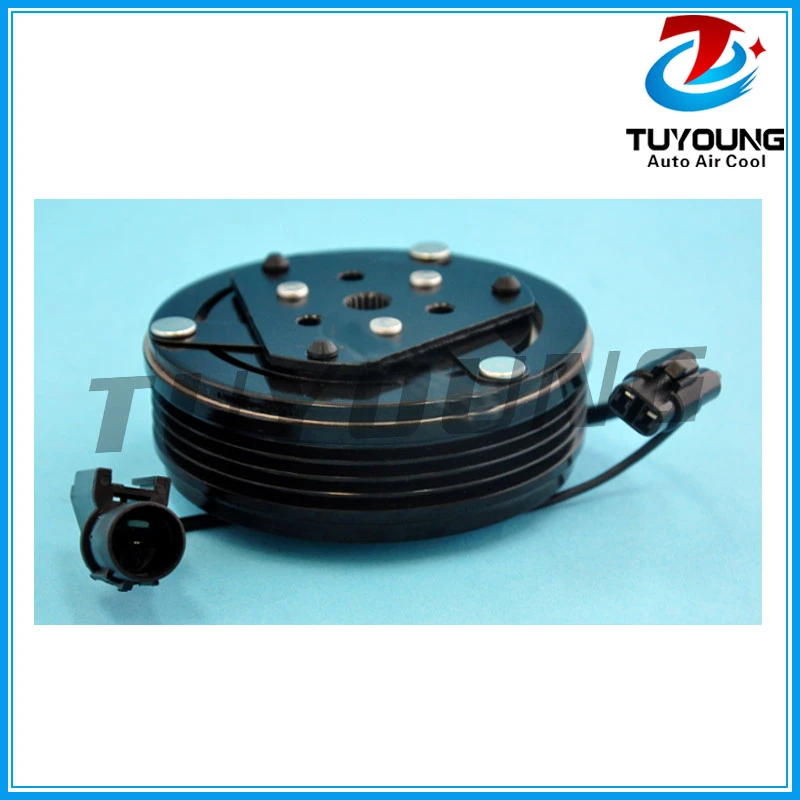

auto ac compressor clutch for Suzuki Swift III SX4 PN# 9520062JA0 AKC011H088 AKC201A083A




Product No.: HY-CH134




Description:

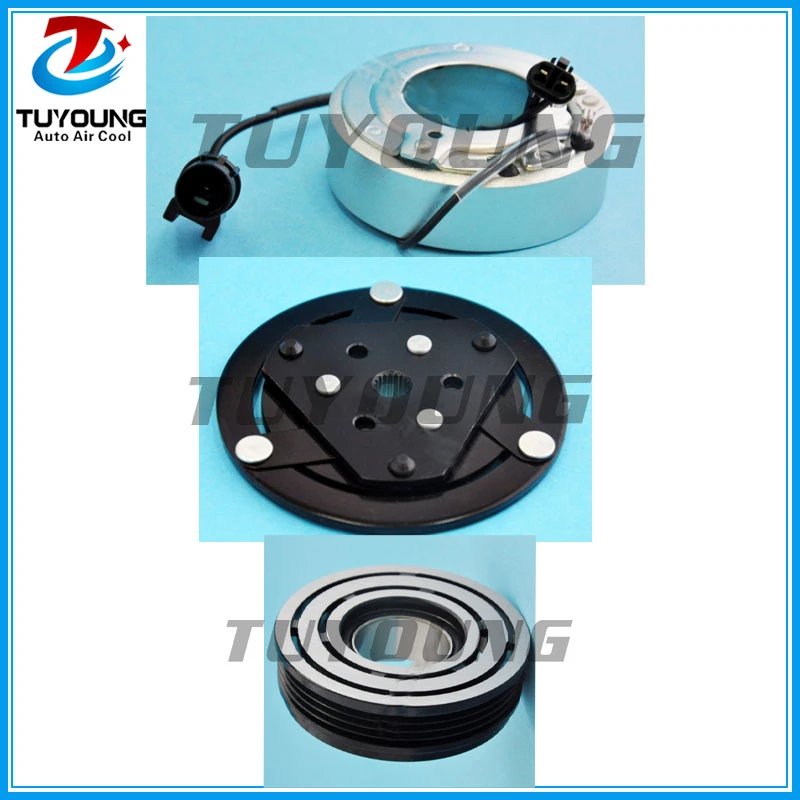

Pulley:

Outer diameter: Ø95 mm

Pulley diameter: 93 mm

Number of grooves: 4PK

Height: 27.2 mm

Bearing: 35x50x20



Inner diameter: 58 mm

Outer diameter: 83 mm

Diameter of the hole: 40 mm

Height: 37 mm

Voltage: 12V


Clutch disc:

Outer diameter: 92 mm

Mounting type: polygonal, 18 grooves

Outer diameter groove: 16 mm

Inner width groove: 9.5 mm

The length of the groove: 10 mm

Fit for SUZUKI SWIFT III (MZ, EZ) 1.3, 1.5, 1.6 2005 -

PN#  95200-62JA0 AKC011H087 AKC011H088 AKC200A083A AKC201A083A
