5SE09 auto AC Compressor clutch hub for Toyota size 104*35.5*M10 x 1.25 mm
5SE09 auto AC Compressor clutch hub for Toyota size 104*35.5*M10 x 1.25 mm
5SE09 auto AC Compressor clutch hub for Toyota size 104*35.5*M10 x 1.25 mm
Model
HY-XP84

Item specifics

original
China
Car model
Toyota
Compressor type
5SE09
OEM
NA
outer diameter max:
104mm
total thickness:
35.5 mm
the height of the mandrel from the friction surfa:
mm
dimension of the groove / manifold / thread:
M10 x 1.25 mm

Review

Description

wholesale price 5SE09 automotive air conditioning compressor

clutch hub for Toyota size 104*35.5*M10 x 1.25 mm


TUYoung ID: HY-XP84

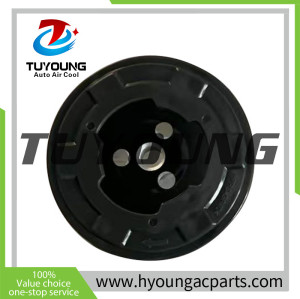

5SE09 Compressor / DENSO air compressor clutch disc

dimensions:
A - outer diameter max.,
B - total thickness,
C - the height of the mandrel from the friction surface,
D - dimension of the groove / manifold / thread

A = 104 mm
B = 35.5 mm
C = -
D = M10 x 1.25 mm

Application:
TOYOTA
