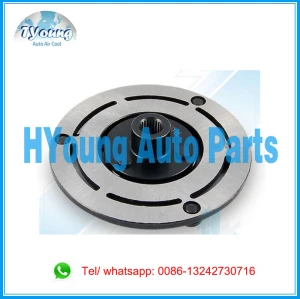

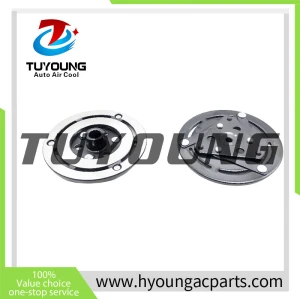

Denso 10S13 auto ac compressor clutch hub for Ford Focus Suzuki Grand Vitara BMW X5 447220-4144
Denso 10S13 auto ac compressor clutch hub for Ford Focus Suzuki Grand Vitara BMW X5 447220-4144
Model
HY-XP73

Item specifics

original
China
Car model
Ford Focus Suzuki Grand Vitara BMW X5
Compressor type
Denso 10S13 7SBH17C
OEM
447220-4144
outer diameter max:
102mm
total thickness:
32mm
the height of the mandrel from the friction surfa:
16.8mm
dimension of the groove / manifold / thread:
13.5x25x0.5 mm

Review

Description

Wholesale price Denso 10S13 7SBH17C automotive air conditioning compressor clutch hub for Ford Focus Suzuki Grand Vitara BMW X5 447220-4144


HYoung ID: HY-XP73


DENSO compressor clutch compressor clutch disc


10S13
7SBH17C

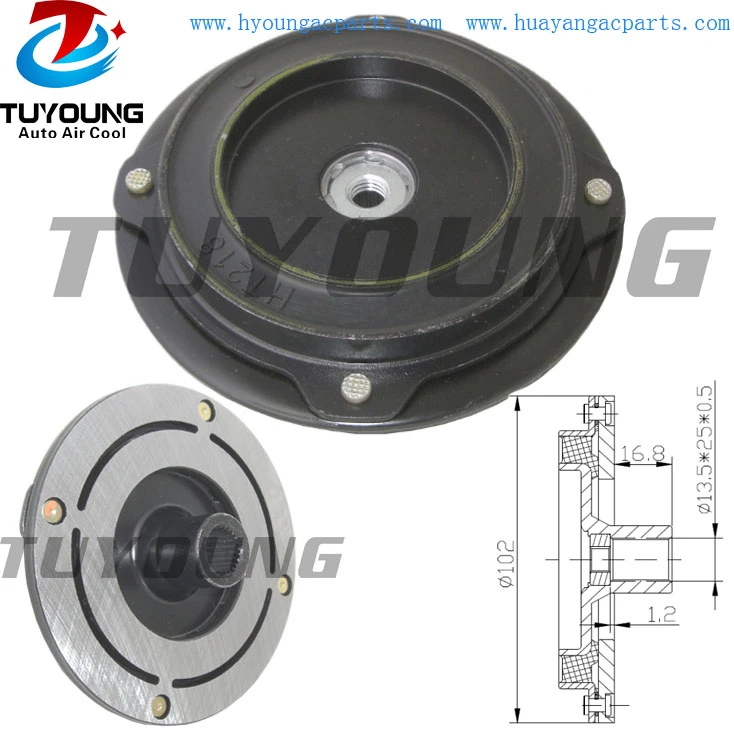

dimensions:
A - outer diameter max.,
B - total thickness,
C - the height of the mandrel from the friction surface,
D - groove / manifold dimension

A = 102 mm
B = 32 mm
C = 16.8 mm
D = 13.5x25x0.5


Multi-blade disc


Application:
FORD C-Max II 1.5 TDCi CEU 2015- 1499ccm XWD. XXD.
FORD C-Max II 1.6 TDCi CB7 2012-2015 1560ccm T1DA T1DB
FORD C-Max II 1.6 TDCi CB7 2012-2015 1560ccm T3DA T3DB
FORD Focus III 1.5 TDCi CEW 2014- 1499ccm XWD. XXD.
FORD Galaxy II 1.6 TDCi WA6 2012- 1560ccm T1WA T1WB
FORD Grand C-Max 1.5 TDCi 2015- 1499ccm XWD. XXD.
FORD Grand C-Max 1.6 TDCi 2012-2015 1560ccm T1DA T1DB
FORD Grand C-Max 1.6 TDCi 2012-2015 1560ccm T3DA T3DB
FORD Mondeo IV 1.6 TDCi 2012-2014 1560ccm T1BA T1BB T1BC
FORD Mondeo V 1.6 TDCi CNG 2014- 1560ccm NGCA U3CA
FORD S-Max I 1.6 TDCi 2012- 1560ccm T1WA T1WB
FORD Tourneo Connect 1.6 TDCi 2013- 1560ccm TZGA TZGB
FORD Tourneo Connect 1.6 TDCi 2013- 1560ccm UBGA
FORD Tourneo Connect 1.6 TDCi 2013- 1560ccm T1GA
FORD Tourneo Courier 1.5 TDCi 2014- 1499ccm UGC .. XUC .. XVC ..
FORD Tourneo Courier 1.6 TDCi 2014- 1560ccm T3CA T3CB
FORD Transit Connect 1.5 TDCi 2015- 1499ccm XVGA XVGB XVGC
FORD Transit Connect 1.6 TDCi 2013- 1560ccm T1GA
FORD Transit Connect 1.6 TDCi 2013- 1560ccm TZGA TZGB
FORD Transit Connect 1.6 TDCi 2013- 1560ccm UBGA

SUZUKI Grand Vitara I 2.0 HDI FT GT 2001-2004 1995ccm J20A
SUZUKI Grand Vitara II 2.5 V6 JT 2004- 2493ccm H25A
SUZUKI Grand Vitara II 2.7 V6 JT 2004- 2736ccm H27A
SUZUKI Liana 1.3 ER 2001- 1328ccm M13A PV4
SUZUKI Liana 1.6 ER 2001- 1586ccm

BMW 525d 3.0 F10 F11 2010- 2993ccm N57D30A
BMW 530d 3.0 F10 F11 2010- 2993ccm N57D30A
BMW 530d 3.0 GT F07 2009- 2993ccm N57D30A
BMW 535d 3.0 F10 F11 2010- 2993ccm N57SD30B
BMW 535d 3.0 GT F07 2010- 2993ccm N57SD30B
BMW 730d 3.0 F01 2008- 2993ccm N57D30A
BMW X5 3.0 xDrive 35d E70 2008- 2993ccm N57N306D5
BMW X5 3.0 xDrive 40d E70 2010- 2993ccm N57SD30B




OEM :
447280-7070
1786888
447160-5940
447280-7071
AV61-19D629-HA
AV61-19D629-HB
AV6119D629HA
AV6119D629HB

447220-3394
447170-7260
447170-8672
447220-3384
447220-3393
447220-4140
447220-4141
447220-4142
447220-4143
447220-4144
447220-4145
447220-4570
447220-4571
447220-4572
447220-5801
447220-5811
95200-65DA0
95200-65DA1
95200-65DC1
95200-65DF1
95200-65DH0
95200-65DJ0
95200-67D30

447160-1215
447160-1210
447160-1212
447160-1213
447160-1214
447160-1216
447260-2980
5-447100-090
5-447100-276
64526987890


64526987890-04
447160-4107
447160-4102
447160-4103
447160-4104
447160-4106
447260-4530
447260-4531
447260-4532
447260-4533
9216466
64529216466
