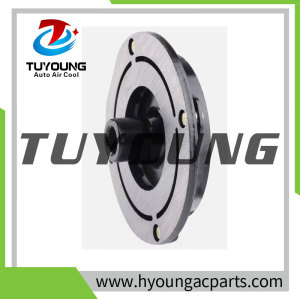

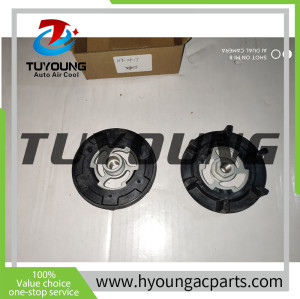

DKS15CH DKS17CH A/C Compressor clutch hub Volvo S80 V70 XC60 size 111.5 *22*8 mm 36000231 Z0002259D
DKS15CH DKS17CH A/C Compressor clutch hub Volvo S80 V70 XC60 size 111.5 *22*8 mm 36000231 Z0002259D
Model
HY-XP46

Item specifics

original
China
Car model
Volvo S80 V70 XC60
Compressor type
DKS15CH DKS17CH
OEM
36000231 Z0002259D
outer diameter max:
111.5mm
total thickness:
22mm
the height of the mandrel from the friction surfa:
8mm
dimension of the groove / manifold / thread:
13.5x25x0.5 mm

Review

Description

Wholesale price DKS15CH DKS17CH automotive air conditioning compressor clutch hub

for Volvo S80 V70 XC60 size 111.5 *22*8 mm 36000231 Z0002259D



HYoung ID: HY-XP46

Clutch / compressor clutch disc ZEXEL

DKS15CH
DKS17CH
KC-88

dimensions:
A - outer diameter max.,
B - total thickness,
C - the height of the mandrel from the friction surface,
D - groove / manifold dimension

A = 111.5 mm
B = 22 mm
C = 8 mm
D = 13.5x25x0.5 mm

Application:
VOLVO S80 II 2.0 AS 2008- 1999ccm B4204S3
VOLVO S80 II 2.4 D AS 2006- 2400ccm D5244T
VOLVO S80 II 2.4 D5 AS 2006- 2400ccm D5244T4
VOLVO S80 II 2.4 D5 AWD AS 2007- 2400ccm D5244T4
VOLVO S80 II 2.5 T AS 2006- 2521ccm B5254T ..
VOLVO V70 II 2.4 D5 2005-2007 2401ccm D5244T ..
VOLVO V70 II 2.4 D5 AWD 2005-2007 2401ccm D5244T ..
VOLVO V70 II 2.4 T5 2004-2008 2401ccm B5244T5
VOLVO V70 III 2.4 D 2007-2011 2400ccm D5244T5 D5244T14
VOLVO V70 III 2.4 D5 2007-2011 2400ccm D5244T4 D5244T10
VOLVO V70 III 2.5 T 2007- 2521ccm B5254T6 BB5254T10
VOLVO XC60 2.4 D 2008- 2400ccm D5244T ..
VOLVO XC60 2.4 D5 2008- 2400ccm D5244T ..
VOLVO XC70 I 2.4 D5 2005-2007 2400ccm D5244T D5244T4
VOLVO XC70 I 2.4 T 2000-2002 2435ccm B5244T3
VOLVO XC70 II 2.4 D5 P24 2007-2011 2401ccm D5244T ..
VOLVO XC90 I 2.4 D5

OEM numbers of the compressors:
1496531
30630921
30750459
30780043
30780443
31250519
31291135
31305833
36000231
36000331
36000456
36001373
36002425
36002747
506041-0262
506041-0263
506041-0423
6G9N-19D623-EB
6G9N-19D623-EE
6G9N-EF-19D623
P30630921
PXC16-1650P
Z0002259
Z0002259D
Z0002259E
Z0002272
Z0005702C
Z0020905A
