DKS15D FORD Focus VOLVO C30 C70 S40 V50 Auto ac compressor clutch 5PV+5PV 36001118 3M5H-19D629-MF
DKS15D FORD Focus VOLVO C30 C70 S40 V50 Auto ac compressor clutch 5PV+5PV 36001118 3M5H-19D629-MF
DKS15D FORD Focus VOLVO C30 C70 S40 V50 Auto ac compressor clutch 5PV+5PV 36001118 3M5H-19D629-MF
DKS15D FORD Focus VOLVO C30 C70 S40 V50 Auto ac compressor clutch 5PV+5PV 36001118 3M5H-19D629-MF
DKS15D FORD Focus VOLVO C30 C70 S40 V50 Auto ac compressor clutch 5PV+5PV 36001118 3M5H-19D629-MF
Model
HY-CH223 = HY-AC391 HY-CH223AC CLUTCH

Item specifics

grooves
5PK+5PK
Clutch diameter
130mm/120MM
Compressor ID
DKS15D
VOLT
12V
Car model
Focus VOLVO C30 C70 S40 V50
OEM
1476878 36001118 3M5H-19D629-MF

Review

Description

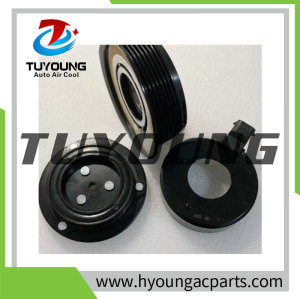

China factory supply DKS15D Automotive air conditioning compressor clutch for FORD Focus VOLVO C30 C70 S40 V50 5PV+5PV 36001118 3M5H-19D629-MF



TUYoung ID: HY-CH223  = HY-AC391 HY-CH223AC CLUTCH

Specification:
ZEXEL compressor / compressor clutch

DKS15D

Number of grooves: 5PV / 5PV
Diameter of the wheel: 130 / 120mm
Bearing dimension: 35x50x20
Coil voltage: 12V

Application:
FORD C-Max I 1.6 2007-2010
FORD Focus II 2.5 RS DA 2009-2011
FORD Focus II 2.5 RS 500 DA 2010-2011
FORD Focus II 2.5 ST DA 2005-
FORD Kuga I 2.5 CBV 2009-2012
FORD Kuga I 2.5 4x4 CBV 2009-2012
VOLVO C30 2.0 D3 2010-2012
VOLVO C30 2.0 D4 2010-2012
VOLVO C30 2.4 2006-2012
VOLVO C30 2.4 D5 2006-2012
VOLVO C30 2.4 D5 2006-2012
VOLVO C30 2.5 T5 2006-2012
VOLVO C70 II 2.4 2006-2009
VOLVO C70 II 2.5 T5 2006-2007
VOLVO C70 II 2.5 T5 2007-2009
VOLVO S40 II 2.0 D3 MS 2010-2012
VOLVO S40 II 2.0 D4 MS 2010-2012
VOLVO S40 II 2.4 D5 MS 2006-2012
VOLVO S40 II 2.4 D5 MS 2006-2012
VOLVO S40 II 2.5 T5 MS 2004-2012
VOLVO S40 II 2.5 T5 AWD MS 2004-2012
VOLVO V50 2.0 D3 MW 2010-2012
VOLVO V50 2.0 D4 MW 2010-2012
VOLVO V50 2.4 MW 2004-2012
VOLVO V50 2.4 D5 MW 2006-2012
VOLVO V50 2.5 T5 MW 2004-2012
VOLVO V50 2.5 T5 AWD MW 2004-2012

OEM  :
3M5H-19D629-MF
1466258
1476878
1673990
30761390
30761391
30780330
31308257
36000029
36000316
36000570
36001118
3M5H-ME-19D629
3M5H-19D629-MJ
3M5H-19D629-MK
3M5H-ML-19D629
506012-0473
506012-0474
506012-1963
506012-2160
506012-2161
506012-2163
506012-2164
P-51-0686
8602925
8603656
Z0010356A
Z0011442A
