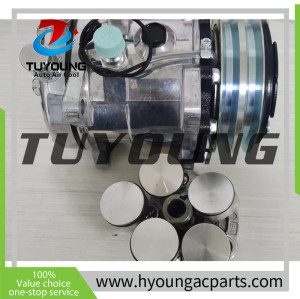

7T-7825 Sanden SD510 4504 Heavy Duty ac compressor 3E-7704 8T-8816 7T7825 3E7704 8T8816
7T-7825 Sanden SD510 4504 Heavy Duty ac compressor 3E-7704 8T-8816 7T7825 3E7704 8T8816
Model
HY-AC2775

Item specifics

Brand name
TUYoung auto air cool
Clutch diameter
138 mm
Compressor ID
Sanden SD510
VOLT
12V
Car model
John Deere etc Heavy Duty
OEM
7T-7825 3E-7704 8T-8816
grooves
1PK

Review

Description

China factory supply 10PA17C Automotive air conditioning compressor clutch for John Deere FORESTER Agriculture TY6784 RE55422



TUYoung ID: HY-AC2775

Specification:
compressor ID: Sanden SD510
Number of grooves: 1PK
Wheel diameter: 138mm
Refrigerant: R134a
Voltage:12V
Replaces Sanden Number: 4504
Compressor Family: SD510
Style: Sealed Heavy Duty
Compressor Mount Type: Ear Rotation
Direction: CW
Cylinder Head: QM
Port Angle: Horizontal Pad
Clutch Diameter: 138 mm ~ 5 and 7/16 inches
Belt Type: V-Belt
Number of Grooves: 1
Voltage: 12
Coil Connector: 2 Wire Caterpillar
Coil Position: 12 O'clock
Oil Type: Mineral (Use With R12) or PAG 100 (Use With R134)
Oil Qty: 310cc
Refrigerant: R12 and R134a Compatible


OEM

7T-7825

3E-7704

8T-8816

7T7825

3E7704

8T8816


Application:
JOHN DEERE FORESTER 1010D 1410D 1710DJOHN DEERE FORESTER 1711D
