automotive air conditioning parts, integrated Roof air conditioner, fits bus / truck / Engineering Vehicle/and other large vehicles
- Model
- HY-RAC04 HY-RAC04a HY-RAC04b
Item specifics
- Brand name
- TUYOUNG
- Condition
- new
- item
- integrated Roof air conditioner
- fits
- bus / truck / Engineering Vehicle/and other large
- type 1
- HY-RAC04a 24v
- type 2
- HY-RAC04b 12V
- carton size
- 735*753*280mm
Review
Description

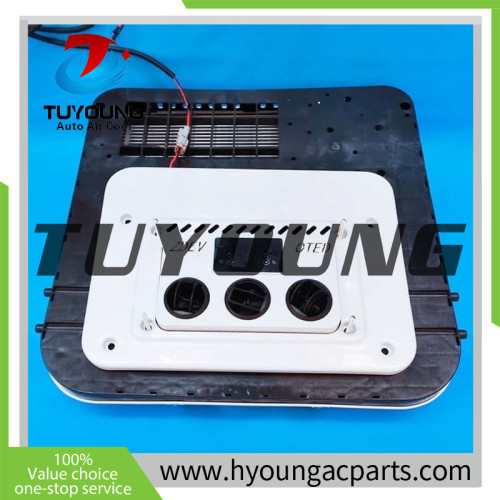

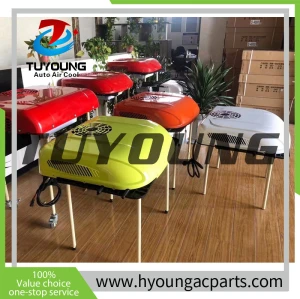

TUYOUNG sale automotive air conditioning parts, integrated Roof air conditioner, fits bus / truck / Engineering Vehicle/and other large vehicles
TUYOUNG ID:HY-RAC04
type 1: HY-RAC04a 24v
type 2: HY-RAC04b 12V
Details:

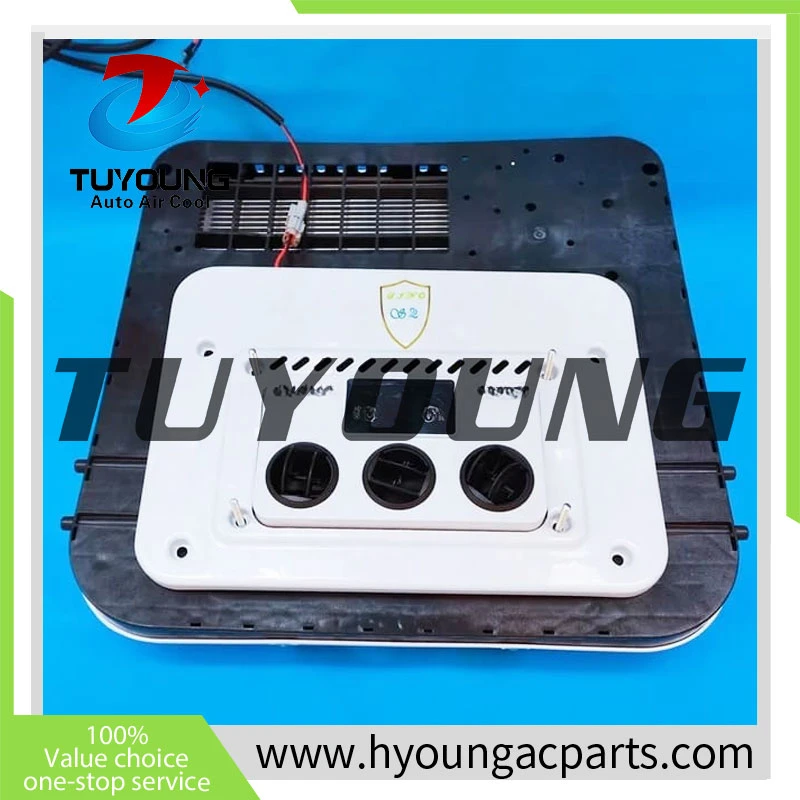

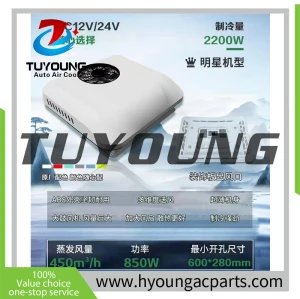

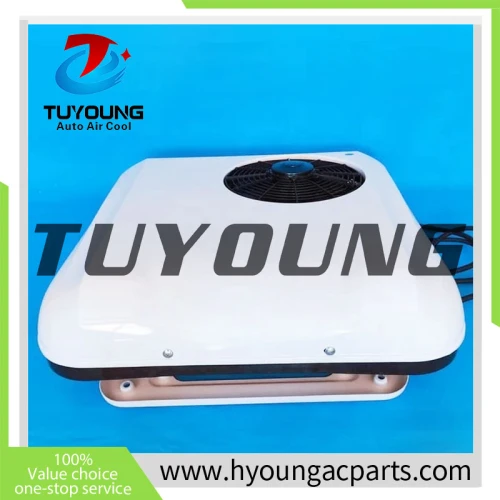

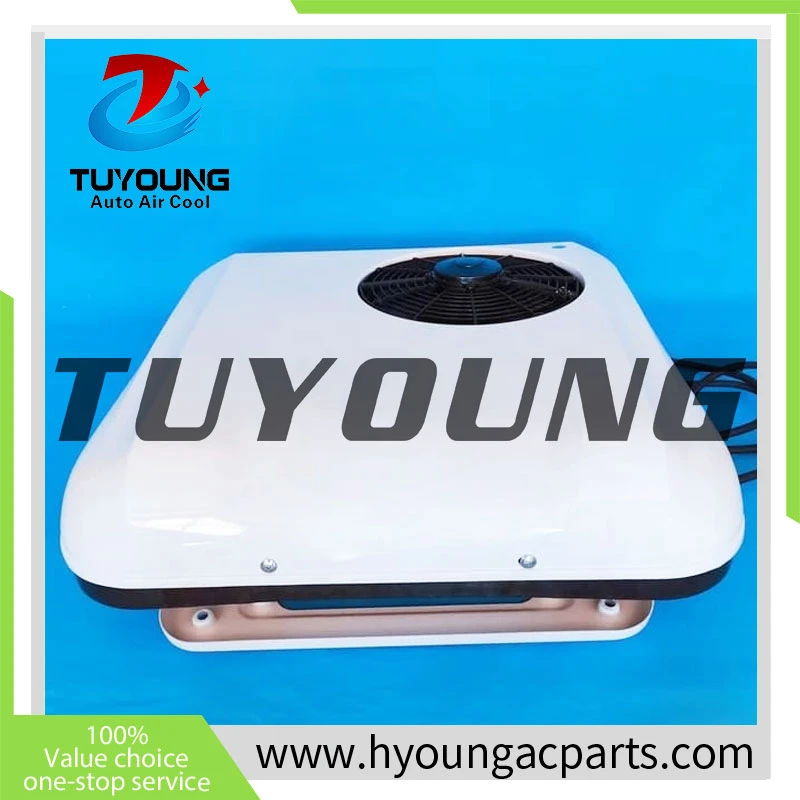

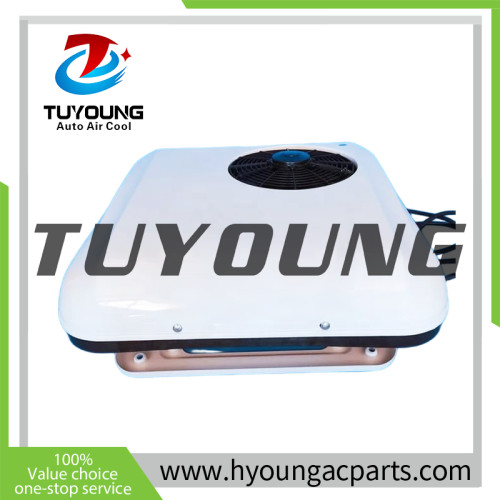

item: integrated Roof air conditioner
fits bus / truck / Engineering Vehicle/and other large vehicles
carton size: 735*753*280mm
Product Parameters:
Indoor Unit Airflow: 400m³/h
Air Outlets: 4
Total Weight: 19.8kg
Electric Fan Power: 100W
Minimum Skylight Size: 380*180mm
Overall Dimensions: 670*668*148mm
12V Product Parameters:
Power: 300-700W
Rated Voltage: 12V
Cooling Capacity: 1800W
Battery Requirements: 100Ah or higher
Rated Current: 50A
Refrigerant: R-134a
Maximum Current: 60A
Outdoor Unit Airflow: 2000m³/h
24V Product Parameters:
Power: 400-1200W
Rated Voltage: 24V
Cooling Capacity: 2600W
Battery Requirements: 100Ah or higher
Rated Current: 35A
Refrigerant: R-134a
Maximum Current: 50A
Outdoor Unit Air Circulation Volume: 2000m³/h

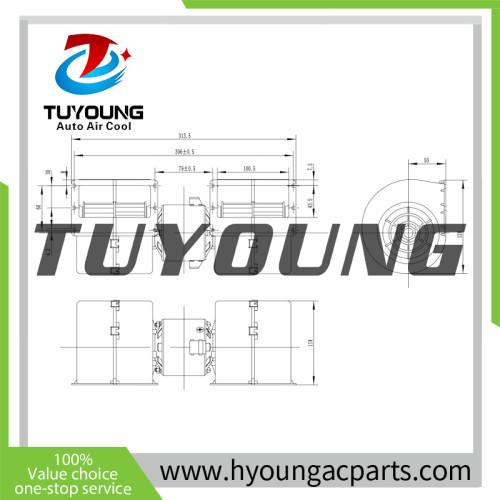

Air conditioner fan motor drawings
Detailed parameters of air conditioner fan motor:
Test Voltage: 27V
Operating Voltage: 24-27V
Operating Current: ≤9.5 A
Maximum Speed: 4600±200rpm
Maximum Speed Noise: 75dBA
Operating Ambient Temperature: -40°C~70°C
Protection Class: IP32
Insulation Resistance: ≥20mA
Insulation Withstand Voltage: 660V/1S without breakdown or flashover
Leakage Current: ≤5mA
Bearings: Ball bearings at both ends
Weight: 1.5 Kg
Packaging: 566*336*261mm
Airflow Test Data
| Static Pressure (Pa) | Air volume (m³/h) | Current (A) |
|---|---|---|
| 0 | 789 | 9.25 |
| 50 | 761 | 8.9 |
| 100 | 733 | 8.6 |
| 150 | 700 | 8.4 |
| 200 | 668 | 8.1 |
