SD7H15 4002 8231 A/C compressor clutch hub for Volvo Truck DAF 1815581 85000458 size 110*32.2*15 mm
SD7H15 4002 8231 A/C compressor clutch hub for Volvo Truck DAF 1815581 85000458 size 110*32.2*15 mm
Model
HY-XP32

Item specifics

original
China
Car model
Volvo Truck DAF
Compressor type
SD7H15
OEM
1815581 85000458 SD7H15 4002 8231
outer diameter max:
110mm
total thickness:
32.2mm
the height of the mandrel from the friction surfa:
15mm
dimension of the groove / manifold / thread:
12.9mm

Review

Description

China factory manufacture SD7H15 4002 8231 automotive air conditioning

compressor clutch hub for Volvo Truck DAF 1815581 85000458 size 110*32.2*15 mm


HYoung ID: HY-XP32

SD7H15 Compressor clutch disc / SANDEN air conditioning compressor

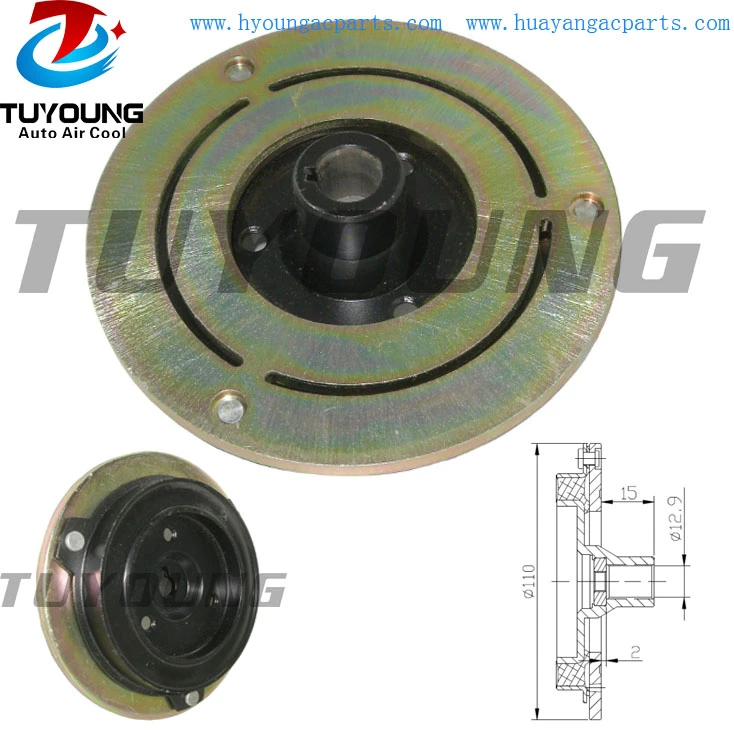

dimensions:
A - outer diameter max.,
B - total thickness,
C - the height of the mandrel from the friction surface,
D - groove / manifold dimension

A = 110 mm
B = 32.2 mm
C = 15 mm
D = 12.9 mm

Shield for wedge

Application:
VOLVO TRUCK FH I 400 2005- 12800ccm D13A400 D13B400
VOLVO TRUCK FH I 440 2005- 12800ccm D13A440 D13B440
VOLVO TRUCK FH I 480 2005- 12800ccm D13A480
VOLVO TRUCK FH I 500 2005- 12800ccm D13C500
VOLVO TRUCK FH I 520 2005- 12800ccm D13A520
VOLVO TRUCK FH16 1993-2002 16120ccm D16A520
VOLVO TRUCK FH16 2003- 16120ccm D16C550
VOLVO TRUCK FM 330 2005- 10800ccm D11C330
VOLVO TRUCK FM 360 2005- 12800ccm D13A360 / B360
VOLVO TRUCK FM 370 2005- 10800ccm D11C370
VOLVO TRUCK FM 380 2005- 12800ccm D13C380
VOLVO TRUCK FM 390 2008- 10800ccm D11B390
VOLVO TRUCK FM 400 2005- 12800ccm D13A400 D13B400
VOLVO TRUCK FM 410 2005- 10800ccm D11C410
VOLVO TRUCK FM 420 2005- 12800ccm D13C420
VOLVO TRUCK FM 440 2005- 12800ccm D13A440 D13B440
VOLVO TRUCK FM 450 2005- 10800ccm D11C450
VOLVO TRUCK FM 460 2005- 12800ccm D13C460
VOLVO TRUCK FM 480 2005- 12800ccm D13A480
VOLVO TRUCK FM 500 2005- 12800ccm D13C500

DAF 85CF.340 2001- XF280 PV7 Ø136
DAF 85CF.380 2001- XF280 PV7 Ø136
DAF 85CF.430 2001- XE315 PV7 Ø136
DAF 85CF.480 2001- XE355 PV7 Ø136
DAF XF105.410 2005- 12900ccm MX300S
DAF XF105.460 2005- 12900ccm MX340S
DAF XF105.510 2005- 12900ccm MX375S

OEM numbers of the compressors:
20587125
85000458
1685170
1815581
1864126
SD7H15-4002
SD7H15-6048
SD7H15-8231
SD7H15-4324
