TUYOUNG China produce auto a/c system Parking Heater With intelligent start-stop
- Model
- HY-PH008
Item specifics
- brand name
- TUYOUNG Auto Air Cool
- place of origin
- China
- condition
- new
- detail
- With intelligent start-stop
- volt
- 12V/24V
- Fuel
- Diesel oil
Review
Description

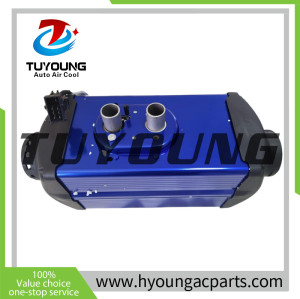

TUYOUNG China produce aftermarket auto a/c parking heating
TUYOUNG ID: HY-PH008
Details:
With intelligent start-stop
Highland version
5KW
12V/24V
Color: red
Fuel: Diesel oil
Independent heating unit
Full car warming speed
Instructions for use
11. Setting Temperature Mode Stop and Oil Pump Flow: Disconnect the switch cable. Then press and hold the power button. Then plug in the switch cable. The screen will display "CF," followed by a number. Release the switch. Multiply the displayed number by 5 and add 1. Take the last digit of the result, for example, 2*5+1, which equals 6. Press the up button to select 6, then press the power button to enter the setting function.
The first item displayed is: Power Voltage, which will sequentially show 24V power supply, -12V power supply, and -0A automatic voltage. In 0A state, press the power button to confirm. Automatic voltage matching will be achieved.
Then the screen will display "22," indicating a 22 oil pump. Pressing the up button will display "28," indicating a 28 oil pump. Pressing the up button again will display "0A," indicating automatic oil pump matching.
Select the oil pump flow rate you want to match and press the power button to confirm. The oil pump setting is now complete.
After the oil pump setting is complete, the screen will display "t5" to enable the temperature mode stop function, and "t----" to disable the temperature mode stop function. To enable it, in the "t5" state, press the power button to confirm. After all settings are complete, the screen will display "5u" and then the device will shut down in 5 seconds, indicating that all settings are complete.
