CWV618 Auto ac compressor clutch hub for Nissan Maxima 115*21.2*11.2 mm 92600-31U00
- Model
- HY-XP103
Item specifics
- original
- China
- Car model
- Nissan Maxima
- Compressor type
- CWV618
- OEM
- 92600-31U00
- outer diameter max:
- 115mm
- total thickness:
- 21.2mm
- the height of the mandrel from the friction surfa:
- 11.2mm
- dimension of the groove / manifold / thread:
- 13.5x25x0.5 mm
Review
Description
China factory supply CWV618 automotive air conditioning compressor clutch hub for Nissan Maxima 115*21.2*11.2 mm 92600-31U00
HYoung ID: HY-XP103
Clutch / compressor clutch disc CALSONIC
CWV618

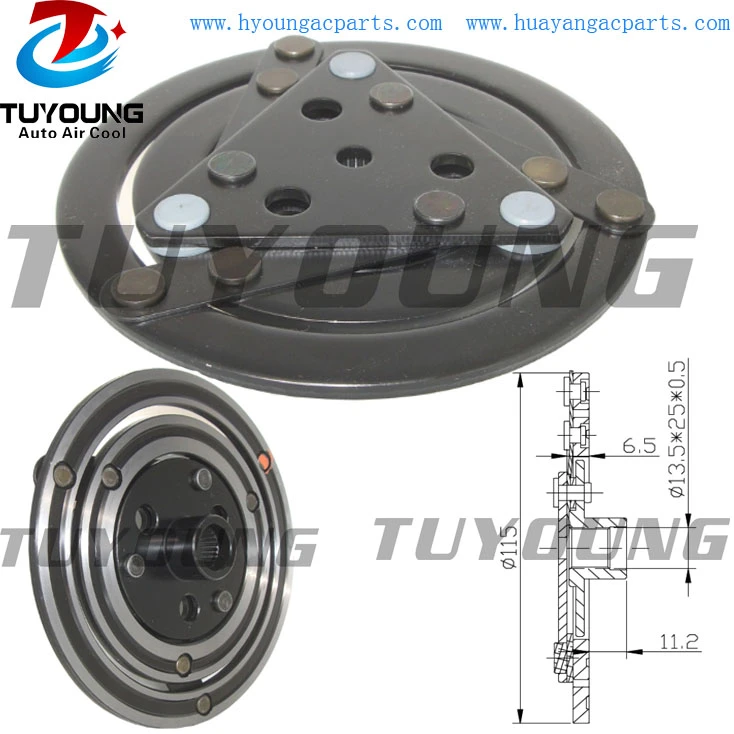

dimensions:
A - outer diameter max.,
B - total thickness,
C - the height of the mandrel from the friction surface,
D - dimension of the groove / manifold / thread
A = 115 mm
B = 21.2 mm
C = 11.2 mm
D = 13.5x25x0.5 mm
Application:
NISSAN Maxima QX II 2.0 V6 A32 1995-1996 1995ccm VQ20DE
NISSAN Maxima QX II 3.0 V6 A32 1995-1996 2988ccm VQ30DE
NISSAN Maxima QX II 2.0 V6 A32 1997-2000 1995ccm VQ20DE
NISSAN Maxima QX II 3.0 V6 A32 1997-2000 2988ccm VQ30DE
NISSAN Maxima QX III 2.0 V6 A33 2000-2003 1995ccm VQ20DE
NISSAN Maxima QX III 3.0 V6 A33 2000-2003 2988ccm VQ30DE
OEM :
74000-45010
74001-45010
74009-45010
74101-45010
92600-02700
92600-31U00
92600-31U01
92600-31U60
92600-40U01
92600-40U40
92600-40U60
2W650-45010
74150-45010
74152-45010
74153-45010
74154-45010
74200-45010
74250-45010
74251-45010
74252-45010
92600-0L700
92600-0L701
92600-0L702
92600-0L703
92600-2Y010
92600-31U10
92600-31U11
92600-31U12
92600-31U20
2W600-45010
2W601-45010
92600-2Y000
92600-2Y001
